Alignment Shim

An alignment shim is a thin, precisely manufactured piece of material used to align, level, or adjust components in machinery, structures, or assemblies. These shims fill gaps or create specific spacing between parts to ensure proper alignment, balance, or functionality, thereby reducing wear, improving efficiency, and prolonging the lifespan of the components.

Alignment shims are commonly used in: Industrial machinery installations, Automotive applications(e.g., wheel alignment), Structural adjustments in construction and Equipment setups like motors, pumps, and gearboxes.

Ready Cut Shims

Thin, flat pieces of metal or other materials used to create uniform spacing between surfaces.

Precut Shims

Shims pre-cut to standard shapes and sizes for convenience.

Coupling Shims

Shims with a tapered edge that can be inserted to correct angular misalignment.

Customized Shims

Shims with a slot or cut-out for easier installation around bolts or shafts.

Standard Specifications for Alignment Shims

ID – Inside dimensions .020” to 3.00”
OD – Outside dimensions .050” to 4.00”
Thicknesses 0.02MM to 6.00MM
Materials available Aluminum, Brass, Beryllium Copper, Copper, Stainless steel 316, Stainless steel, Titanium, Nickel, Inconel, Hastelloy, Monel

Types of Alignment Shims

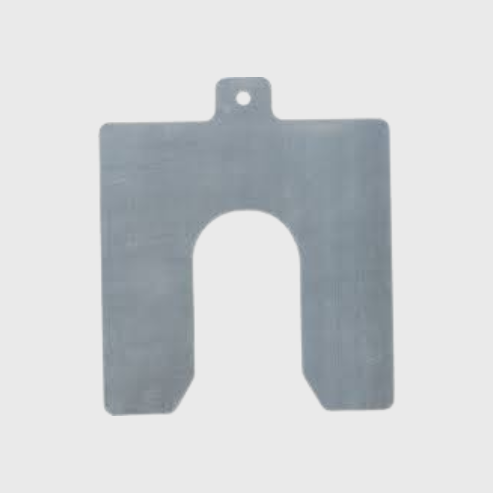

Flat Shims

Leveling machine bases or correcting misaligned assemblies. Materials used Stainless steel, brass, or plastic.

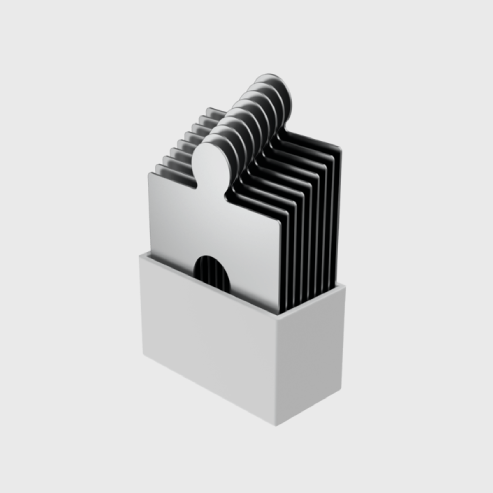

Slotted Shims

Used in machinery alignment, particularly for quick adjustments without disassembling the machine. Materials used Stainless steel or Aluminum.

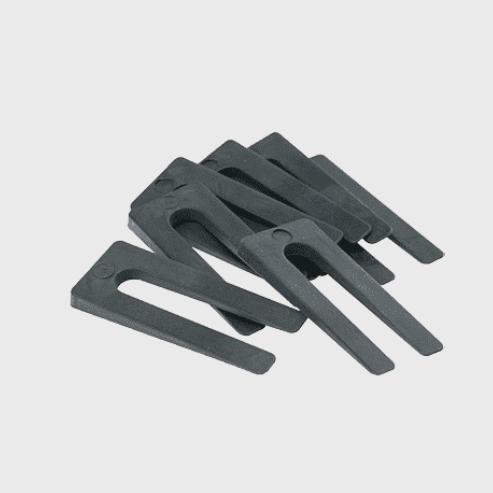

Tampered Shims

Ideal for fixing angular gaps between machine parts. Materials used Stainless Steel or Aluminum.

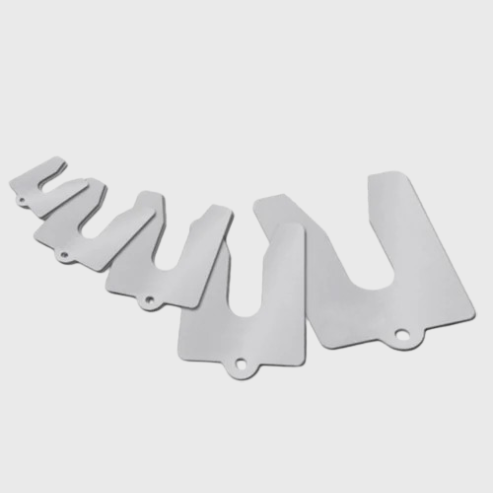

Pre-Cut Shims

Fast and efficient solutions for common alignment tasks. Material used Typically metal.

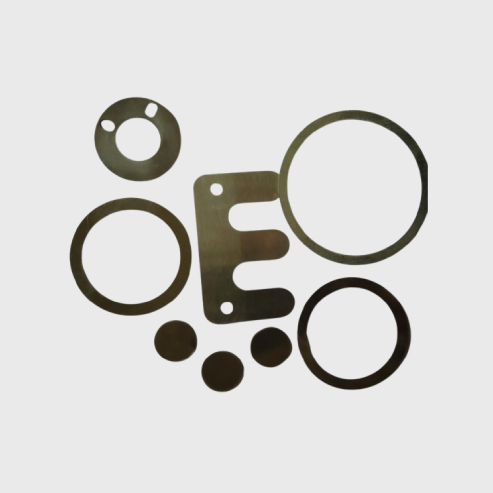

Custom Shims

For specialized machinery or non-standard applications. Material used Any, based on application needs.

Materials We Deal

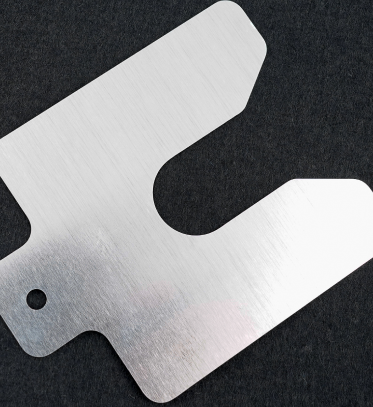

Stainless Steel Shims

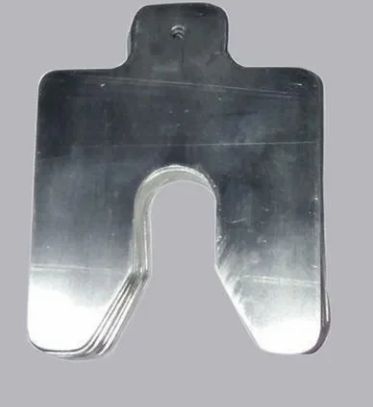

Hastelloy Shims

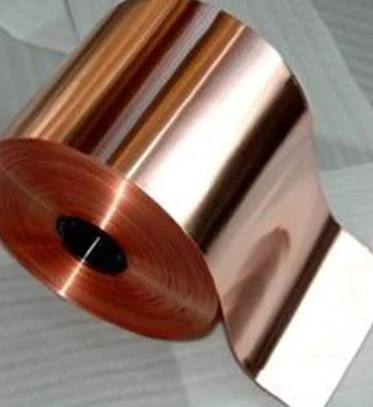

Copper Shims
